Audit logging tracks all configuration changes and data operations within your Bytebase workspace. These logs help you identify who performed what action, when it occurred, and what resources were affected. This enables compliance monitoring, security analysis, and troubleshooting.

Audit logging is available only for Pro and Enterprise plans.

Accessing Audit Logs

GUI

Workspace Admin or DBA can access audit logs through the Bytebase console:

Navigate to the Settings page
Select Audit Log from the sidebar

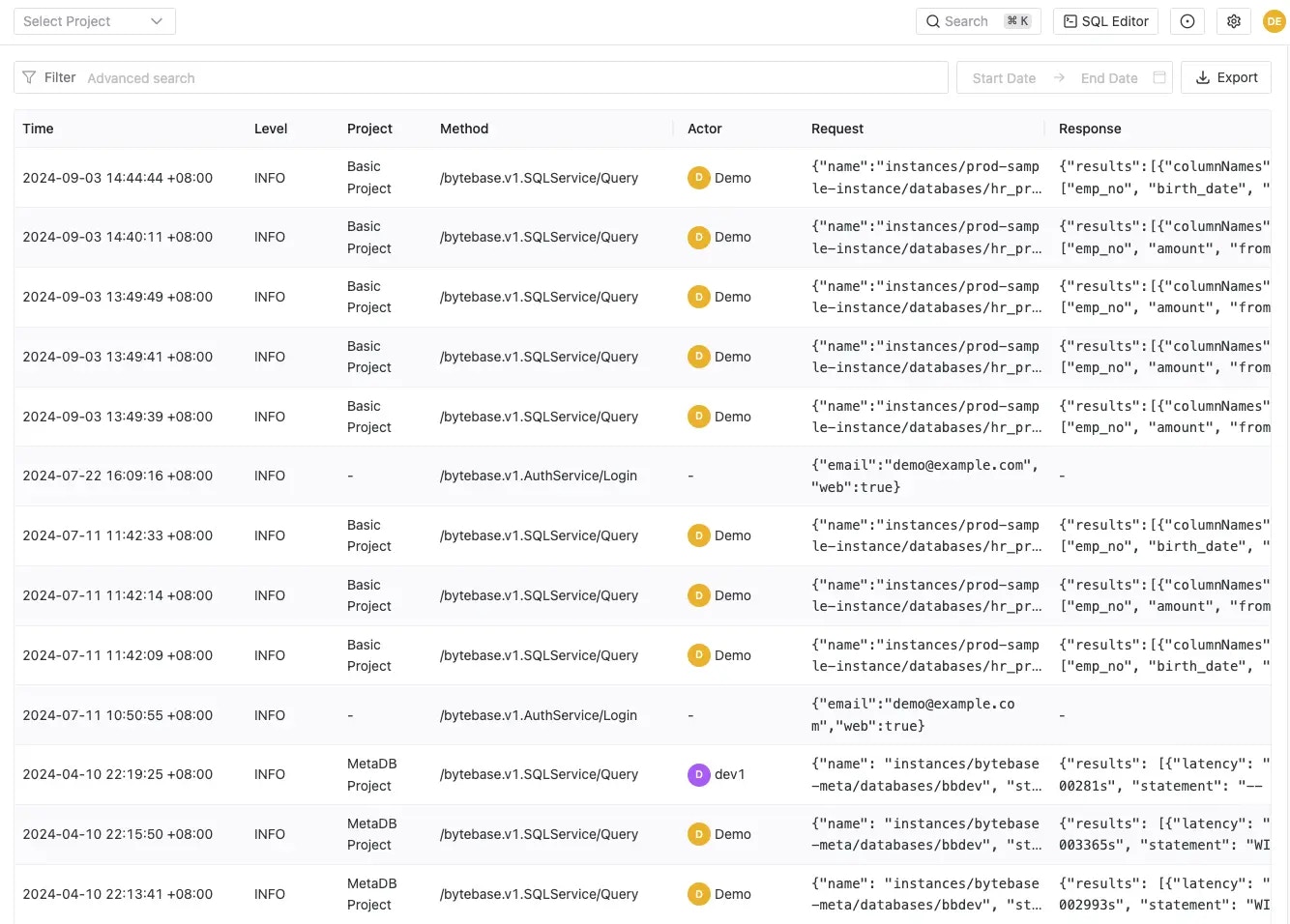

View the chronological list of all audit events

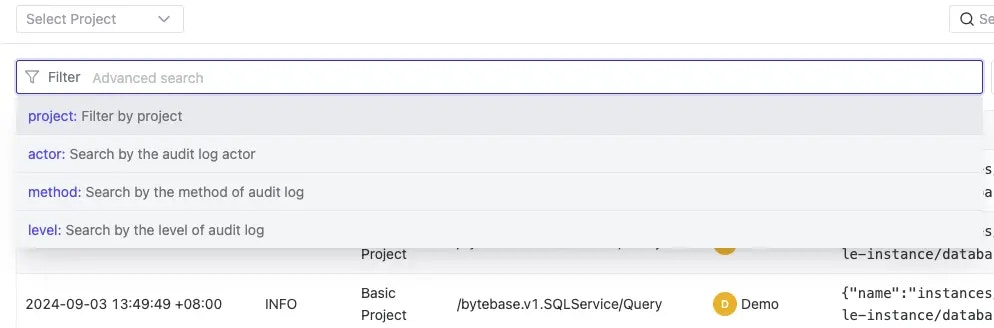

You can filter audit logs by:

User
Action type
Resource

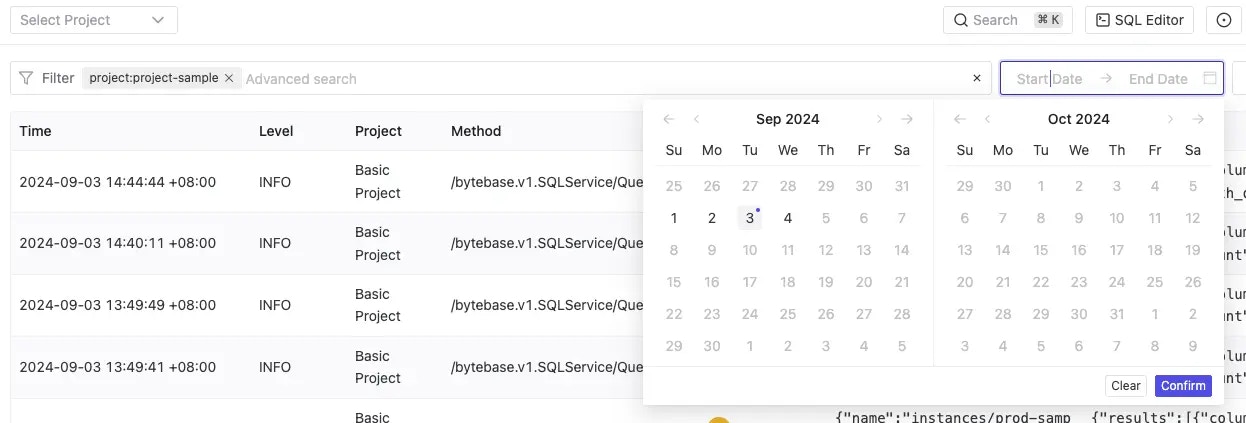

Time range

API

Use the Bytebase API to programmatically access audit logs for integration with external systems and automated monitoring.

For detailed API documentation and examples, see Audit Log API.

Streaming

Stream audit logs to external logging and monitoring systems for centralized management. It supports JSON format output in addition to the default text format.

Navigate to Settings → General → Audit Log Export
Enable Enable audit logging to stdout
Save the configuration

Once enabled, all audit events stream to stdout of your Bytebase service. To enable JSON format output, start Bytebase with the --enable-json-logging flag:

docker run --rm --init \
  --name bytebase \
  --publish 8080:8080 --pull always \
  --volume ~/.bytebase/data:/var/opt/bytebase \
  bytebase/bytebase:latest \
  --enable-json-logging

Supported integrations:

SIEM Platforms: e.g., Splunk, Datadog, Elastic Security
Log Aggregators: e.g., Fluentd, Logstash, Grafana Loki
Cloud Services: e.g., AWS CloudWatch, Google Cloud Logging, Azure Monitor

Log Structure

Example Entry

{
  "parent": "projects/sample-project",
  "method": "/bytebase.v1.SQLService/Query",
  "resource": "instances/prod-postgres/databases/mydb",
  "user": "users/[email protected]",
  "severity": "INFO",
  "request": "{\"name\":\"instances/prod-postgres/databases/mydb\",\"statement\":\"SELECT * FROM users LIMIT 10\",\"limit\":100}",
  "response": "{\"results\":[{\"columnNames\":[\"id\",\"name\"],\"columnTypeNames\":[\"int4\",\"text\"],\"rowsCount\":10}]}",
  "status": { "code": 0 },
  "latency": { "seconds": 0, "nanos": 125000000 },
  "requestMetadata": {
    "callerIp": "192.168.1.100",
    "callerSuppliedUserAgent": "Mozilla/5.0 Chrome/120.0"
  }
}

Payload Fields

Field	Type	Description
`parent`	string	Scope of the audit log. Format: `projects/{project}` or `workspaces/{workspace}`
`method`	string	Full API method name. Example: `/bytebase.v1.SQLService/Query`
`resource`	string	The primary resource being acted upon
`user`	string	User who performed the action. Format: `users/{email}`
`severity`	string	Log severity level
`request`	string	JSON-serialized request payload (sensitive fields redacted)
`response`	string	JSON-serialized response payload (sensitive fields redacted)
`status`	object	gRPC status with `code` and `message` fields
`latency`	object	Operation duration with `seconds` and `nanos` fields
`serviceData`	object	Service-specific metadata (e.g., IAM policy changes)
`requestMetadata`	object	Client information including `callerIp` and `callerSuppliedUserAgent`

Severity Levels

Level	Value	Description
`SEVERITY_UNSPECIFIED`	0	Unspecified
`DEBUG`	1	Debug-level information
`INFO`	2	Informational messages (default)
`NOTICE`	3	Notable events
`WARNING`	4	Warning conditions
`ERROR`	5	Error conditions
`CRITICAL`	6	Critical conditions
`ALERT`	7	Action must be taken immediately
`EMERGENCY`	8	System is unusable

Status Codes

Status codes follow gRPC conventions:

Code	Name	Description
0	OK	Operation succeeded (no error)
1	CANCELED	Operation was canceled, typically by the caller
2	UNKNOWN	Operation failed for an unknown reason
3	INVALID_ARGUMENT	Client supplied an invalid argument
4	DEADLINE_EXCEEDED	Deadline expired before the operation could complete
5	NOT_FOUND	Requested entity (e.g., file, resource) was not found
6	ALREADY_EXISTS	Entity that client attempted to create already exists
7	PERMISSION_DENIED	Caller doesn’t have permission to execute the operation
8	RESOURCE_EXHAUSTED	Some resource has been exhausted (e.g., quota, disk space)
9	FAILED_PRECONDITION	System is not in a state required for operation’s execution
10	ABORTED	Operation aborted due to concurrency issue (e.g., transaction abort)
11	OUT_OF_RANGE	Operation attempted past the valid range (e.g., seek past EOF)
12	UNIMPLEMENTED	Operation isn’t implemented, supported, or enabled
13	INTERNAL	Internal error - some invariants expected by the system have been broken
14	UNAVAILABLE	Service is currently unavailable (usually temporary)
15	DATA_LOSS	Unrecoverable data loss or corruption
16	UNAUTHENTICATED	Request does not have valid authentication credentials

Audited Events

Authentication

Event	Method	Description
User Login	`/bytebase.v1.AuthService/Login`	User authentication (password, SSO, MFA)
User Logout	`/bytebase.v1.AuthService/Logout`	User session termination
Token Exchange	`/bytebase.v1.AuthService/ExchangeToken`	Workload Identity token exchange for CI/CD pipelines

Notes:

Sensitive fields redacted: password, otpCode, recoveryCode, mfaTempToken, idpContext
MFA phase logs extract user email from MFA temp token when email is not in request

User Management

Event	Method	Description
Create User	`/bytebase.v1.UserService/CreateUser`	Create new user account
Update User	`/bytebase.v1.UserService/UpdateUser`	Modify user settings, MFA, profile
Delete User	`/bytebase.v1.UserService/DeleteUser`	Soft-delete user account
Restore User	`/bytebase.v1.UserService/UndeleteUser`	Restore deleted user
Update Email	`/bytebase.v1.UserService/UpdateEmail`	Change user email address

Notes:

User responses redacted to only include: name, email, title, userType

Group Management

Event	Method	Description
Create Group	`/bytebase.v1.GroupService/CreateGroup`	Create user group
Update Group	`/bytebase.v1.GroupService/UpdateGroup`	Modify group membership/settings
Delete Group	`/bytebase.v1.GroupService/DeleteGroup`	Delete user group

Role Management

Event	Method	Description
Create Role	`/bytebase.v1.RoleService/CreateRole`	Create custom role
Update Role	`/bytebase.v1.RoleService/UpdateRole`	Modify role permissions
Delete Role	`/bytebase.v1.RoleService/DeleteRole`	Delete custom role

Identity Provider (SSO)

Event	Method	Description
Create Identity Provider	`/bytebase.v1.IdentityProviderService/CreateIdentityProvider`	Configure new SSO provider
Update Identity Provider	`/bytebase.v1.IdentityProviderService/UpdateIdentityProvider`	Modify SSO configuration
Delete Identity Provider	`/bytebase.v1.IdentityProviderService/DeleteIdentityProvider`	Remove SSO provider

Project Management

Event	Method	Description
Delete Project	`/bytebase.v1.ProjectService/DeleteProject`	Soft-delete project
Restore Project	`/bytebase.v1.ProjectService/UndeleteProject`	Restore deleted project
Batch Delete Projects	`/bytebase.v1.ProjectService/BatchDeleteProjects`	Delete multiple projects
Set Project IAM Policy	`/bytebase.v1.ProjectService/SetIamPolicy`	Modify project member permissions

Notes:

IAM policy changes include serviceData with PolicyDelta showing added/removed bindings

Workspace IAM

Event	Method	Description
Set Workspace IAM Policy	`/bytebase.v1.WorkspaceService/SetIamPolicy`	Modify workspace-level permissions

Notes:

Includes serviceData with PolicyDelta showing added/removed bindings

Instance Management

Event	Method	Description
Create Instance	`/bytebase.v1.InstanceService/CreateInstance`	Register new database instance
Update Instance	`/bytebase.v1.InstanceService/UpdateInstance`	Modify instance configuration
Delete Instance	`/bytebase.v1.InstanceService/DeleteInstance`	Soft-delete instance
Restore Instance	`/bytebase.v1.InstanceService/UndeleteInstance`	Restore deleted instance
Batch Update Instances	`/bytebase.v1.InstanceService/BatchUpdateInstances`	Bulk update instances
Add Data Source	`/bytebase.v1.InstanceService/AddDataSource`	Add connection to instance
Update Data Source	`/bytebase.v1.InstanceService/UpdateDataSource`	Modify connection settings
Remove Data Source	`/bytebase.v1.InstanceService/RemoveDataSource`	Remove connection

Notes:

DataSource sensitive fields redacted: password, sslCa, sslCert, sslKey, sshPassword, sshPrivateKey, authenticationPrivateKey, externalSecret, saslConfig.krbConfig.keytab, masterPassword

Database Management

Event	Method	Description
Update Database	`/bytebase.v1.DatabaseService/UpdateDatabase`	Modify database settings/labels
Batch Update Databases	`/bytebase.v1.DatabaseService/BatchUpdateDatabases`	Bulk update databases
Update Database Catalog	`/bytebase.v1.DatabaseCatalogService/UpdateDatabaseCatalog`	Modify schema catalog/classification

Database Groups

Event	Method	Description
Create Database Group	`/bytebase.v1.DatabaseGroupService/CreateDatabaseGroup`	Create logical database group
Update Database Group	`/bytebase.v1.DatabaseGroupService/UpdateDatabaseGroup`	Modify database group
Delete Database Group	`/bytebase.v1.DatabaseGroupService/DeleteDatabaseGroup`	Delete database group

SQL Operations

Event	Method	Description
Execute Query	`/bytebase.v1.SQLService/Query`	Execute read-only SQL query
Admin Execute	`/bytebase.v1.SQLService/AdminExecute`	Execute SQL with admin privileges (streaming)
Export Data	`/bytebase.v1.SQLService/Export`	Export query results to file

Notes:

Response rows completely redacted - only metadata captured: columnNames, columnTypeNames, rowsCount, error, latency, statement
Each request/response pair in streaming operations generates a separate audit log
Export request password field redacted; response content not logged

Issue Management

Event	Method	Description
Create Issue	`/bytebase.v1.IssueService/CreateIssue`	Create change request
Update Issue	`/bytebase.v1.IssueService/UpdateIssue`	Modify issue details
Create Issue Comment	`/bytebase.v1.IssueService/CreateIssueComment`	Add comment to issue
Update Issue Comment	`/bytebase.v1.IssueService/UpdateIssueComment`	Modify issue comment
Batch Update Issues Status	`/bytebase.v1.IssueService/BatchUpdateIssuesStatus`	Bulk status change
Approve Issue	`/bytebase.v1.IssueService/ApproveIssue`	Approve change request
Reject Issue	`/bytebase.v1.IssueService/RejectIssue`	Reject change request
Request Issue	`/bytebase.v1.IssueService/RequestIssue`	Re-request approval

Plan & Rollout

Event	Method	Description
Create Plan	`/bytebase.v1.PlanService/CreatePlan`	Create deployment plan
Update Plan	`/bytebase.v1.PlanService/UpdatePlan`	Modify deployment plan
Create Rollout	`/bytebase.v1.RolloutService/CreateRollout`	Create deployment rollout
Run Tasks	`/bytebase.v1.RolloutService/BatchRunTasks`	Execute deployment tasks
Skip Tasks	`/bytebase.v1.RolloutService/BatchSkipTasks`	Skip deployment tasks
Cancel Task Runs	`/bytebase.v1.RolloutService/BatchCancelTaskRuns`	Cancel running tasks

Policy & Settings

Event	Method	Description
Create Policy	`/bytebase.v1.OrgPolicyService/CreatePolicy`	Create organizational policy
Update Policy	`/bytebase.v1.OrgPolicyService/UpdatePolicy`	Modify policy settings
Delete Policy	`/bytebase.v1.OrgPolicyService/DeletePolicy`	Remove policy
Update Setting	`/bytebase.v1.SettingService/UpdateSetting`	Modify system settings

Events Not Logged

Category	Operations	Reason
Read-Only Operations	All `Get`, `List`, `Search*` methods, `GetIamPolicy`	Low security impact - viewing data doesn’t modify state
High-Frequency Operations	`AuthService/Refresh`, `BatchSyncInstances`, Actuator health checks	Too frequent, would create excessive log volume
Validate-Only Requests	Any request with `validate_only = true`	Dry-run operations that don’t modify state
Utility Services	`CELService/*`, `SQLService/AICompletion`, `SQLService/DiffMetadata`	Utility functions with no security implications
Review & Sheet Operations	`ReviewConfigService/`, `SheetService/`, `WorksheetService/*`	Lower security impact configuration
Release & Revision	`ReleaseService/`, `RevisionService/`	Schema tracking operations
Instance Role Operations	`InstanceRoleService/*`	Database role management

Retention

Bytebase does not automatically purge audit logs. You must implement periodic cleanup to prevent disk space exhaustion, which can cause Bytebase to crash.

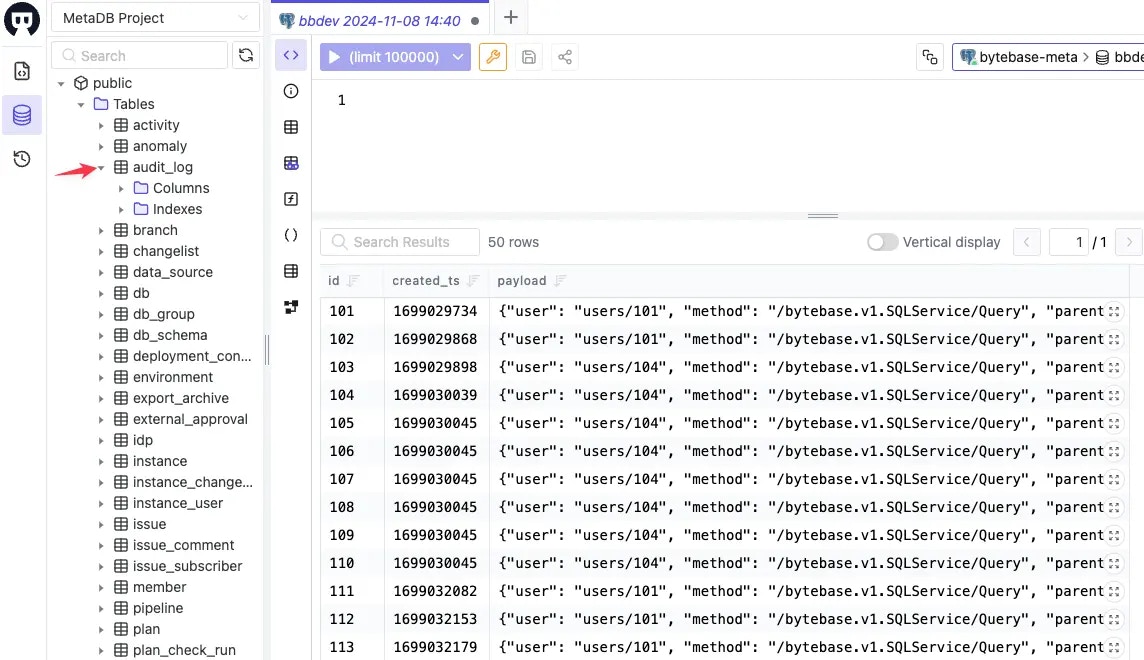

Audit logs are stored in the audit_log table in the Bytebase metadata database. Recommended retention periods:

Minimum: 90 days
Compliance environments: 6–12 months

Cleanup options:

Manually delete old logs from the audit_log table
Set up a scheduled job using pg_cron or system cron
Export logs to external log management or SIEM systems for longer-term retention

Limitations

Privacy and Security

Query results excluded: Actual row data from queries is redacted
Sensitive data masking: Passwords, API keys, SSL certificates, SSH keys automatically replaced with masked values
Response truncation: Large response payloads may be omitted

Technical Constraints

Synchronous generation: Audit logs are generated during request processing
Pagination limit: Maximum 5,000 entries per API call
Filter complexity: Searches must use valid CEL expressions
Storage: Logs stored in metadata database, following its retention policies

Security

General

​Accessing Audit Logs

​GUI

​API

​Streaming

​Log Structure

​Example Entry

​Payload Fields

​Severity Levels

​Status Codes

​Audited Events

​Events Not Logged

​Retention

​Limitations

​Privacy and Security

​Technical Constraints

Accessing Audit Logs

GUI

API

Streaming

Log Structure

Example Entry

Payload Fields

Severity Levels

Status Codes

Audited Events

Events Not Logged

Retention

Limitations

Privacy and Security

Technical Constraints
