Identity Provider-initiated (IdP-initiated) flow allows users to access Bytebase directly from their identity provider’s dashboard or portal, without needing to first visit Bytebase and click a “Sign in with…” button.

​
Overview

In a traditional Service Provider-initiated (SP-initiated) flow, the authentication process starts when a user tries to access Bytebase and clicks the SSO login button. With IdP-initiated flow, the process begins at the identity provider’s side—for example, when a user clicks the Bytebase tile in their Okta dashboard.

​
IdP-Initiated vs SP-Initiated

SP-Initiated (Traditional Flow):
  1. User visits Bytebase
  2. User clicks “Sign in with Okta” button
  3. User is redirected to Okta for authentication
  4. After authentication, user is redirected back to Bytebase
IdP-Initiated Flow:
  1. User is already logged into their IdP (e.g., Okta)
  2. User clicks Bytebase tile/bookmark in their IdP dashboard
  3. User is directly authenticated and redirected to Bytebase

​
Benefits

  • Streamlined user experience: Users can access Bytebase with a single click from their IdP dashboard
  • Centralized access: All applications are accessible from one place (the IdP portal)
  • Reduced friction: Eliminates the extra step of clicking the SSO button in Bytebase

​
Prerequisites

  1. Configure External URL for your Bytebase instance
  2. Set up an OAuth 2.0 or OIDC SSO provider in Bytebase
IdP-initiated flow in Bytebase works with OAuth 2.0 and OpenID Connect (OIDC) protocols. This feature uses a specialized endpoint to initiate the authentication flow from the identity provider’s side.

​
Configuration

​
Step 1: Configure SSO Provider in Bytebase

First, ensure you have already configured your SSO provider (OAuth 2.0 or OIDC) in Bytebase following the respective documentation:

​
Step 2: Get Your IdP-Initiated URL

Once your SSO provider is configured, the IdP-initiated flow URL follows this format:
{EXTERNAL_URL}/auth/idp-init?idp={IDENTITY_PROVIDER_ID}
Where:
  • {EXTERNAL_URL} is your Bytebase external URL (e.g., https://bytebase.example.com)
  • {IDENTITY_PROVIDER_ID} is the Identity Provider ID you specified when creating the SSO provider in Bytebase
Example: If your external URL is https://bytebase.example.com and your Identity Provider ID is okta-company, the IdP-initiated URL would be:
https://bytebase.example.com/auth/idp-init?idp=okta-company

​
Step 3: Add Deep Linking (Optional)

You can optionally specify where users should land after authentication by adding a relay_state parameter. If not provided, users will be directed to the Bytebase homepage after successful authentication.
{EXTERNAL_URL}/auth/idp-init?idp={IDENTITY_PROVIDER_ID}&relay_state={PATH}
Example: To redirect users to a specific project after login:
https://bytebase.example.com/auth/idp-init?idp=okta-company&relay_state=/projects/123
The relay_state parameter is optional. When used, it must be a relative path (starting with /). External URLs are not permitted for security reasons.

​
Okta Configuration

After setting up your OIDC SSO provider in Bytebase, configure the Initiate Login URL in your Okta application to enable IdP-initiated flow.
  1. In your Okta Admin Console, go to Applications > Applications.
  2. Select your existing Bytebase OIDC application (the one you created when setting up OIDC SSO).
  3. Go to the General tab and click Edit in the General Settings section.

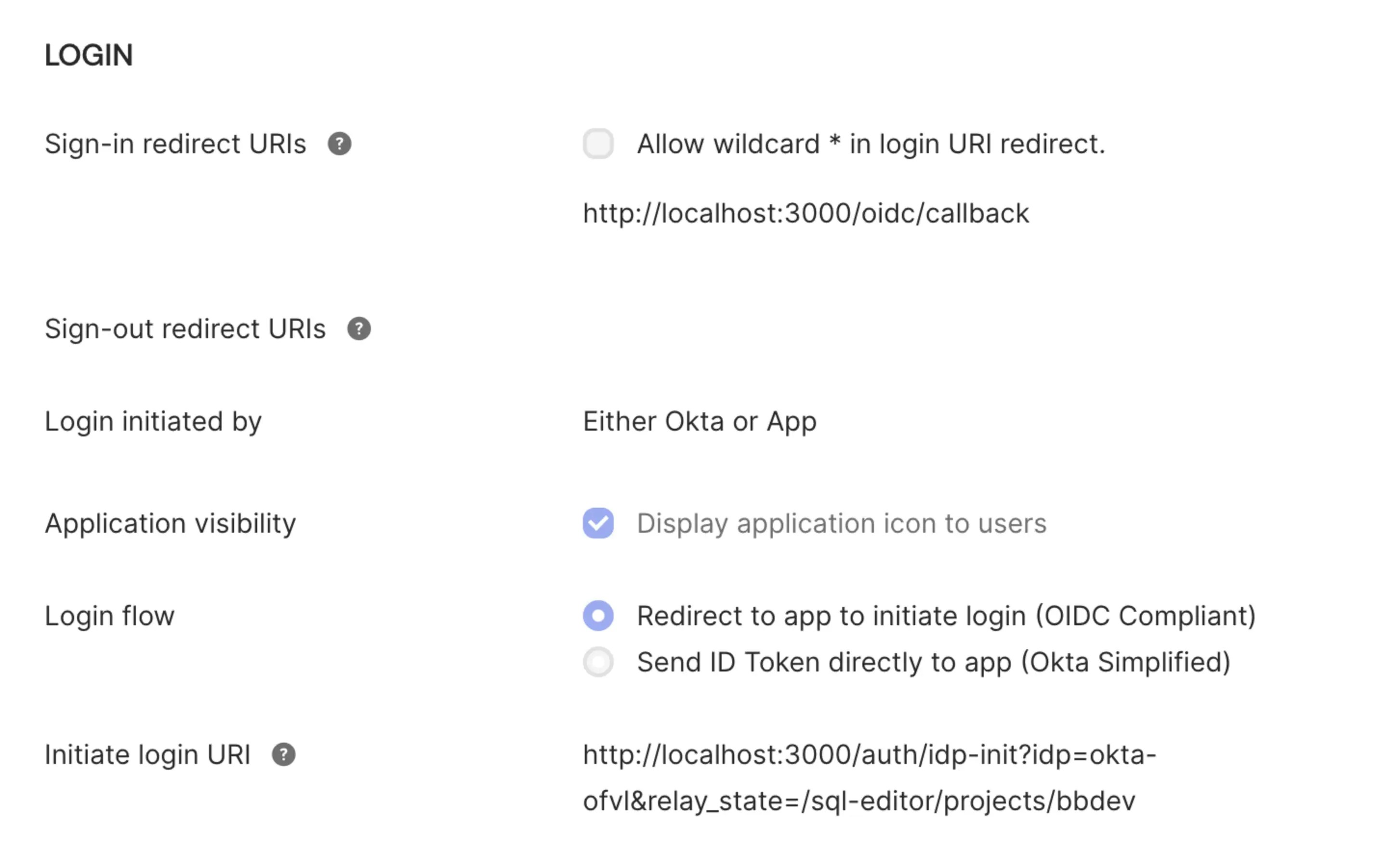

  4. Set the Initiate login URI to your Bytebase IdP-initiated URL:
    https://bytebase.example.com/auth/idp-init?idp=okta-company
    Where okta-company is the Identity Provider ID you configured in Bytebase. okta-initiate-login-uri
  5. Click Save to apply the changes.
  6. Now when users click the Bytebase tile in their Okta End-User Dashboard, they will be automatically authenticated and redirected to Bytebase without needing to click any additional login buttons.
To direct users to a specific page after login, add the relay_state parameter to your Initiate Login URI:
https://bytebase.example.com/auth/idp-init?idp=okta-company&relay_state=/projects/123

​
Other Identity Providers

For other identity providers (GitLab, Keycloak, Casdoor, etc.), the configuration typically involves:
  1. Creating a bookmark/shortcut application in your IdP
  2. Setting the target URL to your Bytebase IdP-initiated URL
  3. Assigning the bookmark to appropriate users or groups
Consult your identity provider’s documentation for creating bookmark or web link applications.

​
Security Considerations

IdP-initiated flow in Bytebase includes several security measures:

​
CSRF Protection

The IdP-initiated flow uses the same state parameter mechanism as SP-initiated SSO to prevent Cross-Site Request Forgery (CSRF) attacks. Each authentication request generates a unique, single-use state token.

​
Token Expiration

State tokens expire after 10 minutes, limiting the window for potential replay attacks.

​
Relay State Validation

The relay_state parameter is validated to ensure it’s a relative path, preventing open redirect vulnerabilities. External URLs are rejected.

​
Existing Session Handling

If a user already has an active Bytebase session when using IdP-initiated flow, the system will respect the existing session state.
While IdP-initiated flow provides a better user experience, SP-initiated flows offer slightly stronger security guarantees because the authentication request originates from and is controlled by the service provider. For high-security environments, consider whether the convenience of IdP-initiated flow is appropriate for your security requirements.

​
Troubleshooting

​
Users redirected to homepage instead of intended destination

If you’re using the relay_state parameter but users are landing on the homepage:
  1. Verify that the relay_state value is URL-encoded if it contains special characters
  2. Ensure the path starts with / (e.g., /projects/123, not projects/123)
  3. Check that the path exists and is accessible to the authenticated user

​
IdP-initiated flow not working

If clicking the application tile in your IdP dashboard doesn’t authenticate users:
  1. Verify your External URL is configured correctly in Bytebase
  2. Check that the Identity Provider ID in the Initiate Login URI matches exactly what you configured in Bytebase (case-sensitive)
  3. Ensure the OIDC SSO provider is properly configured and tested using SP-initiated flow first
  4. Verify the Initiate Login URI is correctly set in your Okta application’s General Settings

​
Authentication succeeds but shows an error

This may indicate an issue with token exchange or user provisioning:
  1. Verify the OAuth/OIDC configuration in Bytebase has correct client ID and secret
  2. Check the user information field mapping in your SSO configuration
  3. Review Bytebase server logs for detailed error messages
  4. Ensure the user’s email in the IdP matches a valid email format

​
