Manage General Settings with Terraform

This tutorial is part of the Bytebase Terraform Provider series:

• Part 1: Manage Environments with Terraform - Set up environments with policies
• Part 2: Manage Databases with Terraform - Register database instances
• Part 3: Manage Projects with Terraform - Organize databases into projects
• Part 4: Manage General Settings with Terraform 👈
• Part 5: Manage SQL Review Rules with Terraform - Define SQL review policies
• Part 6: Manage Users and Groups with Terraform - Configure users and groups
• Part 7: Manage Database Access Control with Terraform - Grant database permissions
• Part 8: Manage Data Masking with Terraform - Protect sensitive data

​

What You’ll Learn

• Configure workspace profile settings including signup controls and external URL
• Define risk policies to automatically assess database operations
• Create multi-step and risk-based approval flows for database changes

​

Prerequisites

Before starting this tutorial, ensure you have:

• Completed Part 3: Manage Projects with Terraform
• Bytebase running with service account configured
• Your Terraform files from the previous tutorials

​

Setup

From the previous tutorials, you should have:

• Bytebase instances and projects configured
• Service account with Workspace Admin role
• Your Terraform files ready for additional configurations

​

Configure General Settings

​

Step 1 - Workspace Profile Configuration

Create 4-1-workspace-profile.tf with the workspace profile settings:

# Workspace profile configuration
resource "bytebase_setting" "workspace_profile" {
  name = "settings/WORKSPACE_PROFILE"

  workspace_profile {
    disallow_signup          = true
    domains                  = ["example.com"]
    enforce_identity_domain  = false
    external_url             = "https://your-bytebase-url.com"
  }
}

This configuration:

• Disables public signup for security
• Restricts users to specific email domains
• Sets your Bytebase instance’s external URL

​

Step 2 - Risk Management Policies

Create 4-2-risk.tf with risk policies to assess the database operations’ risk level:

# Risk management policies
resource "bytebase_risk" "dml_moderate" {
  title     = "DML Moderate Risk"
  source    = "DML"
  level     = 200
  active    = true
  condition = "environment_id == \"prod\" && affected_rows >= 100"
}

resource "bytebase_risk" "ddl_high" {
  title     = "DDL High Risk"
  source    = "DDL"
  level     = 300
  active    = true
  condition = "environment_id == \"prod\""
}

Risk levels:

• 100 (LOW).
• 200 (MODERATE): DML operations in production affecting 100+ rows
• 300 (HIGH): All DDL operations in production

​

Step 3 - Approval Flow Settings

Create 4-3-approval-flow.tf with approval flow configuration that requires multiple approvals for risky operations:

# Approval flow settings
resource "bytebase_setting" "approval_flow" {
  name = "settings/WORKSPACE_APPROVAL"

  approval_flow {
    rules {
      flow {
        title       = "Project Owner → DBA → Admin"
        description = "Need DBA and workspace admin approval"

        steps { role = "roles/projectOwner" }
        steps { role = "roles/workspaceDBA" }
        steps { role = "roles/workspaceAdmin" }
      }
      conditions {
        source = "DML"
        level  = "MODERATE"
      }
      conditions {
        source = "DDL"
        level  = "HIGH"
      }
    }
  }
}

This creates a three-step approval flow that triggers for:

• DML operations with MODERATE risk level
• DDL operations with HIGH risk level

​

Step 4 - Apply Configuration

terraform plan
terraform apply

​

Step 5 - Verify Configuration

​

Workspace Profile Settings

1. Go to Settings > General to verify workspace profile settings.
2. Log out and try to signup which should be disabled.
3. Visit the external URL to verify it is set.

​

Risk Policies

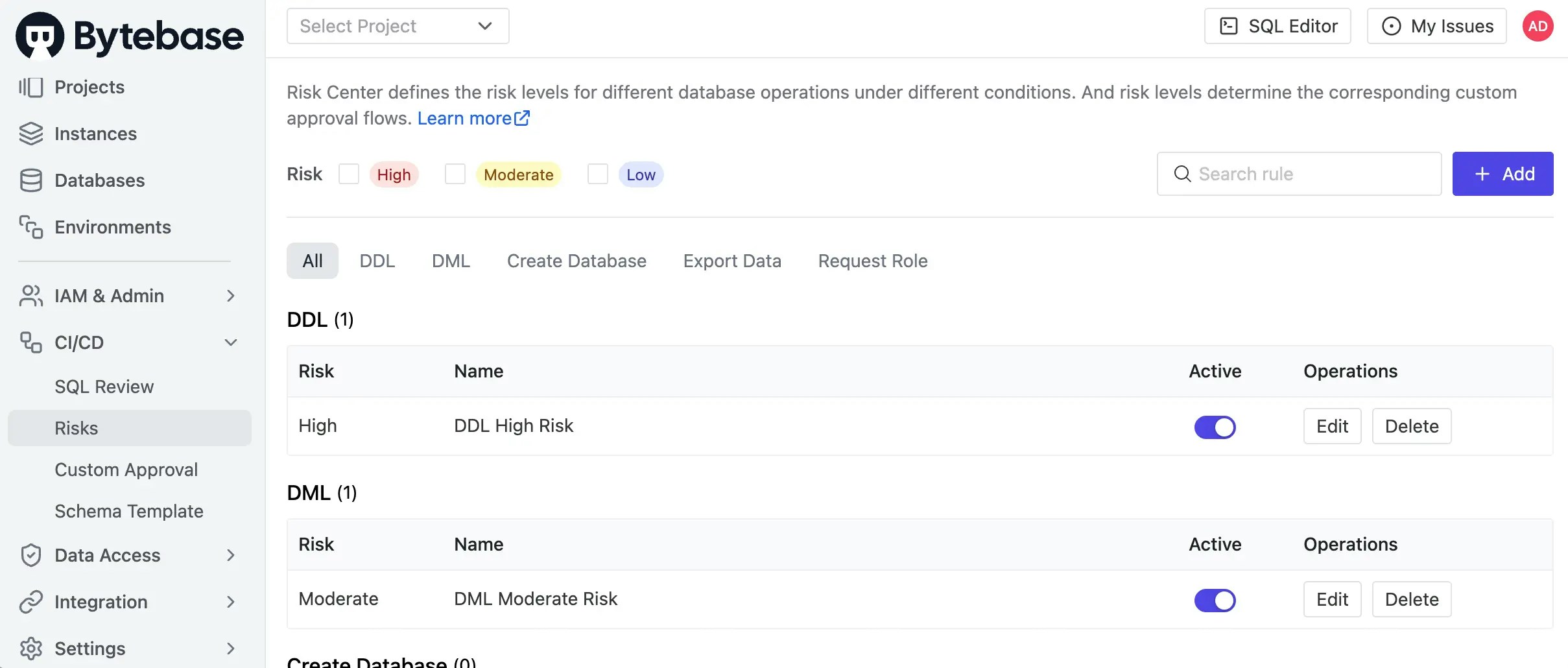

1. Go to CI/CD > Risk Center to view risk policies.



2. You should see both “DML Moderate Risk” and “DDL High Risk” policies active.

​

Approval Flows

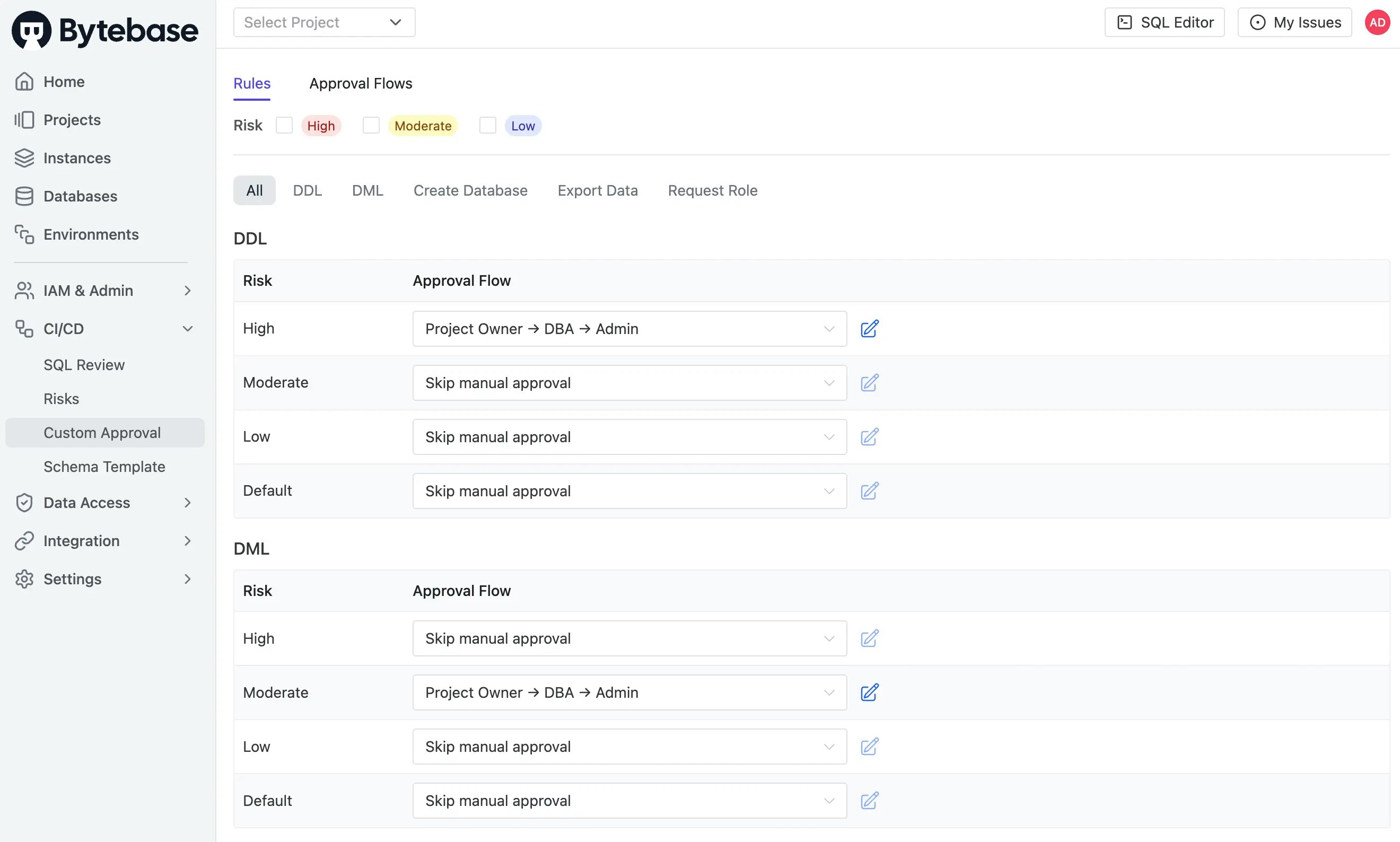

1. Go to CI/CD > Custom Approval to see the approval flow.



2. Verify the Project Owner → DBA → Admin flow is configured.

​

Test the Flow

1. Go to Project Two, click Database > Databases on the left sidebar.

2. Check hr_prod, click Edit Schema, add a new table t0.

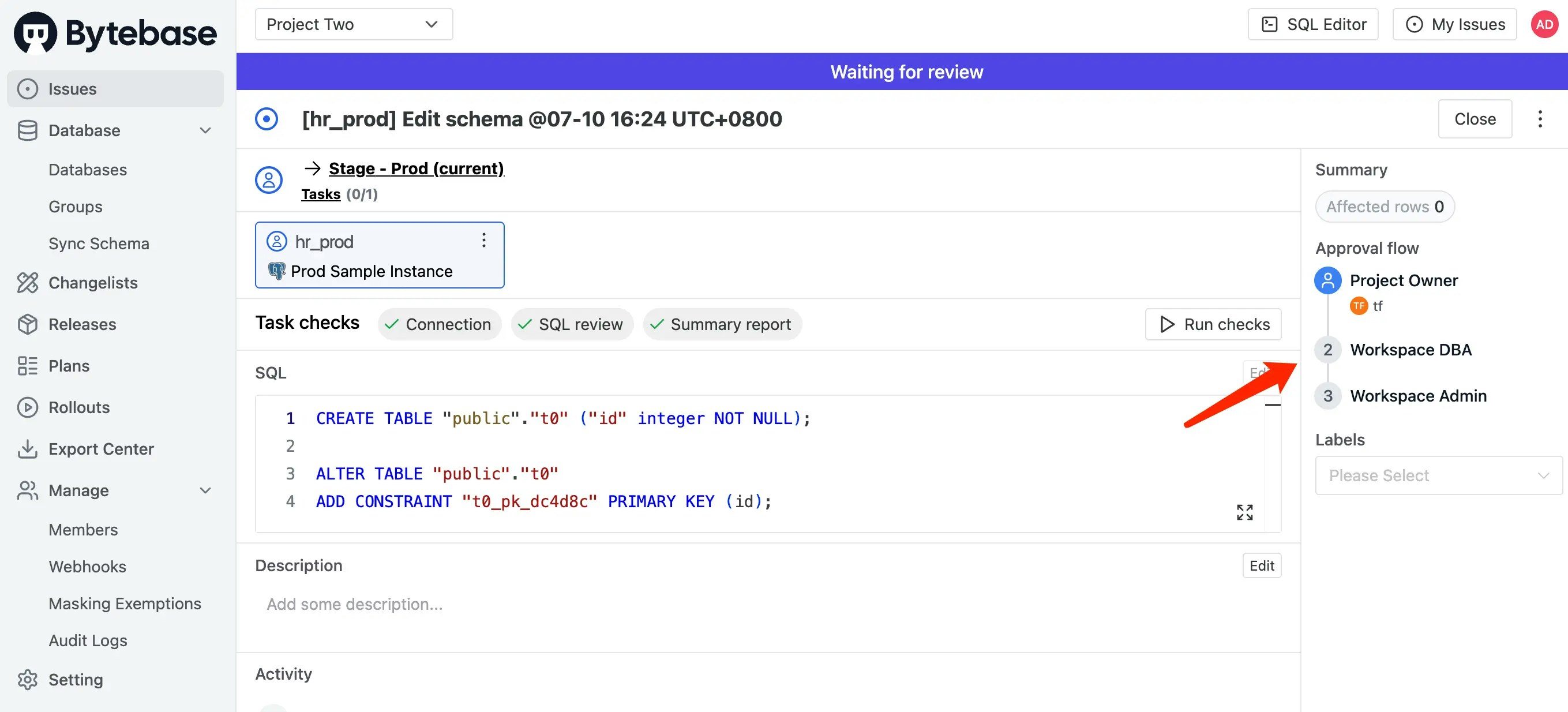

3. After creating the issue, you should see:

   • Risk level: DDL High
   • Approval flow: Project Owner → DBA → Admin



​

Key Points

• Workspace Profile: Controls signup, domain restrictions, and external URL for your entire Bytebase instance
• Risk Policies: Automatically assess database operations based on conditions like environment and affected rows
• Approval Flows: Define multi-step approval processes that trigger based on risk levels
• Integration: Risk policies and approval flows work together to ensure proper governance for database changes
