In the previous tutorial, we demonstrated how to set up JIT access using the Bytebase GUI. In this tutorial, we will cover how to automate JIT access via Slack, utilizing Bytebase webhooks and API. When developers need urgent production database access during incidents but lack permissions, they can request Just-in-Time (JIT) access. By triggering the Bytebase webhook, the DBA will receive a notification in Slack immediately and can approve there. jit-graph-part2
This is Part 2 of our tutorial series on implementing Just-in-Time (JIT) database access:

​
Overview

In this tutorial, you’ll learn how to approve JIT access via Slack with the help of Bytebase webhooks and APIs. The complete code for this tutorial is available at: example-slack This tutorial skips the Bytebase setup part, if you haven’t set up the Bytebase and registered admin and developer users, please follow instructions in the previous tutorial.

​
Prerequisites

Before you begin, make sure you have:
  • Docker installed
  • Slack workspace
  • VS Code for port forwarding

​
Overall Workflow

  1. Create a Slack app. The Slack app listens on the webhook notification when someone submits a database access request.
  2. Upon receiving the webhook event, the Slack app will present a message card in the configured channel with request details and approve/deny buttons.
  3. Upon clicking the approve/deny button, the Slack app will call the corresponding Bytebase API to approve/deny the request.
Another option would require clicking to go to bytebase to approve the request, which can be done by built-in Slack webhook integration.

​
Step 1 - Finished the previous tutorial

Make sure you finished the previous tutorial and have the Bytebase instance running. Particularly, pay attention to Step 4, which is to request JIT access via Bytebase GUI. The Request role feature is supported by Enterprise Plan which will be needed for this tutorial, other plans only allow the Assign role feature which is not enough. You may request a trial from here.

​
Step 2 - Register a service account in Bytebase

  1. Log in as Workspace Admin, and go to IAM & Admin > Users & Groups. Click + Add User, fill in with api-sample, choose the Workspace DBA role sufficient for this tutorial and click Confirm. service-account-create
  2. Find the newly created service account and Copy Service Key. We will use this token to authenticate the API calls. service-account-key
  1. Go to Sample Project, click Manage > Members, and assign the service account as Project Owner which can fit the custom approval set in the previous tutorial.

​
Step 3 - Download example-slack code and run it

  1. Download the example-slack code.
  2. Go to the approve-issue folder and copy the env-template.local file to .env.local.
  3. Paste the registered service account information into the .env.local file.
  4. By using VS Code’s Port forwarding, you can forward the local server’s ports:
    • 3000 for the example-slack app
    • 8080 for the Bytebase instance vscode-ports
  5. Copy the 8080 port forwarded address to the .env.local file as BB_HOST.
  6. Also, go to Bytebase, click Settings > General to set the address as External URL.

​

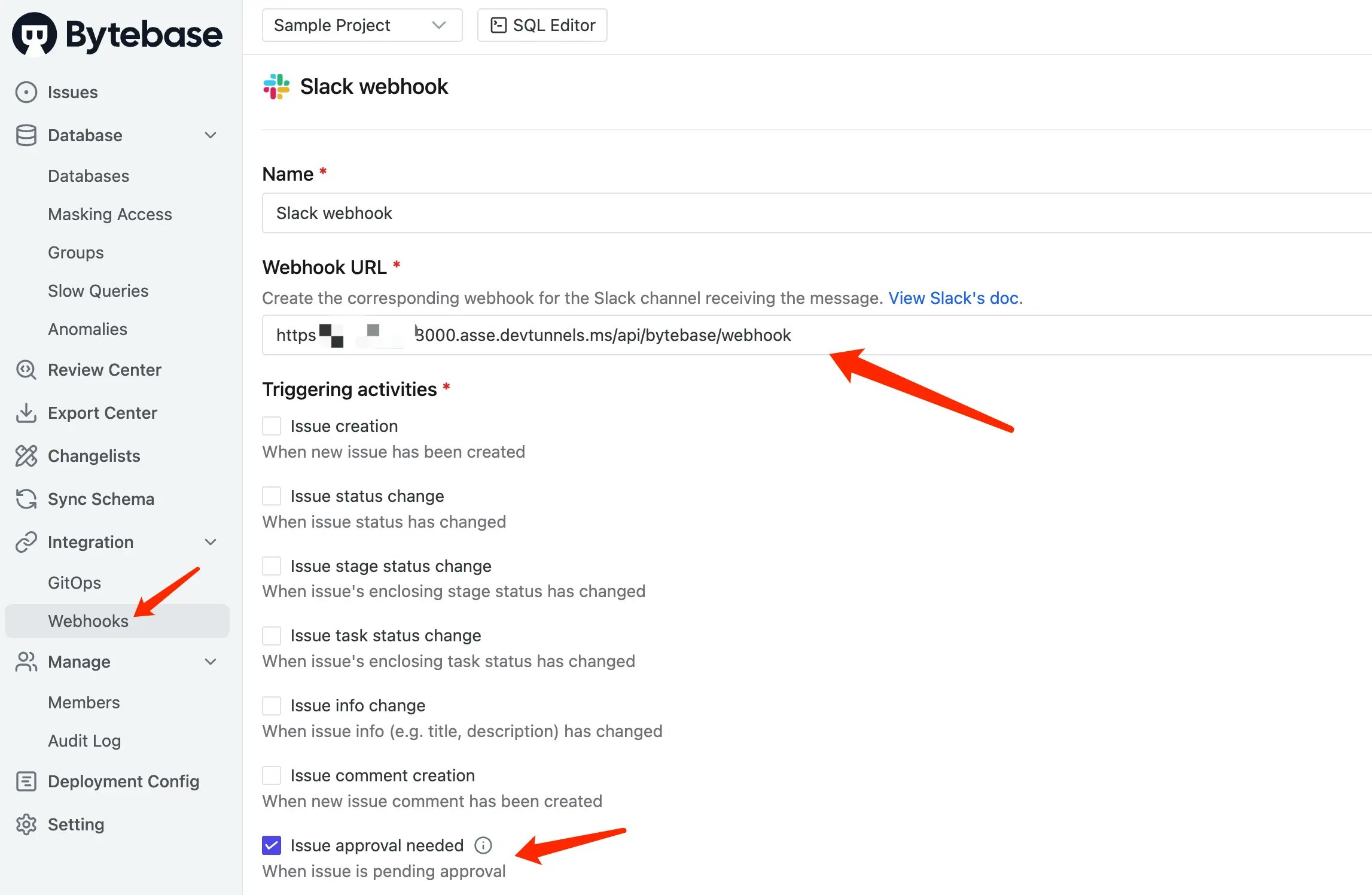

Step 4 - Create Bytebase Webhook

  1. Go to Bytebase and select the Sample Project.
  2. Click Integration > Webhooks and click Add Webhook.
  3. Set the Name as Slack webhook, URL as YOUR_3000_FORWARDED_URL/api/bytebase/webhook.
  4. Select Issue approval needed as Triggering activities.
  5. Click Test webhook and if it’s successful, then click Create. bb-webhook

​
Step 5 - Create and invite a Slack bot

  1. Go to Slack apps and click Create New App.
  2. Choose From scratch, enter the App name, and select your Workspace.
  3. Go to OAuth & Permissions and add the following permissions under Scopes:
    • chat:write (send message)
    • channels:read (read channel id for public channel)
    • groups:read (read channel id for private channel)
  4. Scroll up to OAuth Tokens, click Install to YOUR_WORKSPACE, and authorize the app.
  5. Copy the Bot User OAuth Token and paste it into the .env.local file as SLACK_BOT_TOKEN.
  6. Choose a channel and invite the bot to the channel by typing /invite @YOUR_BOT_NAME.
  7. Go to Interactivity & Shortcuts in app settings, turn on Interactivity and add the Request URL: YOUR_3000_FORWARDED_URL/api/slack/interact. Click Save Changes.

​
Step 6 - Verify the workflow

Now, everything is ready, let’s verify the workflow:
  1. Go to Bytebase, log in as the developer and go into the Sample Project.
  2. By default, the developer has no permission to access the database. Click Manage > Members and you’ll see the devloper only has Project Developer role. If you go to SQL Editor, you’ll see the hr_prod database is not accessible.

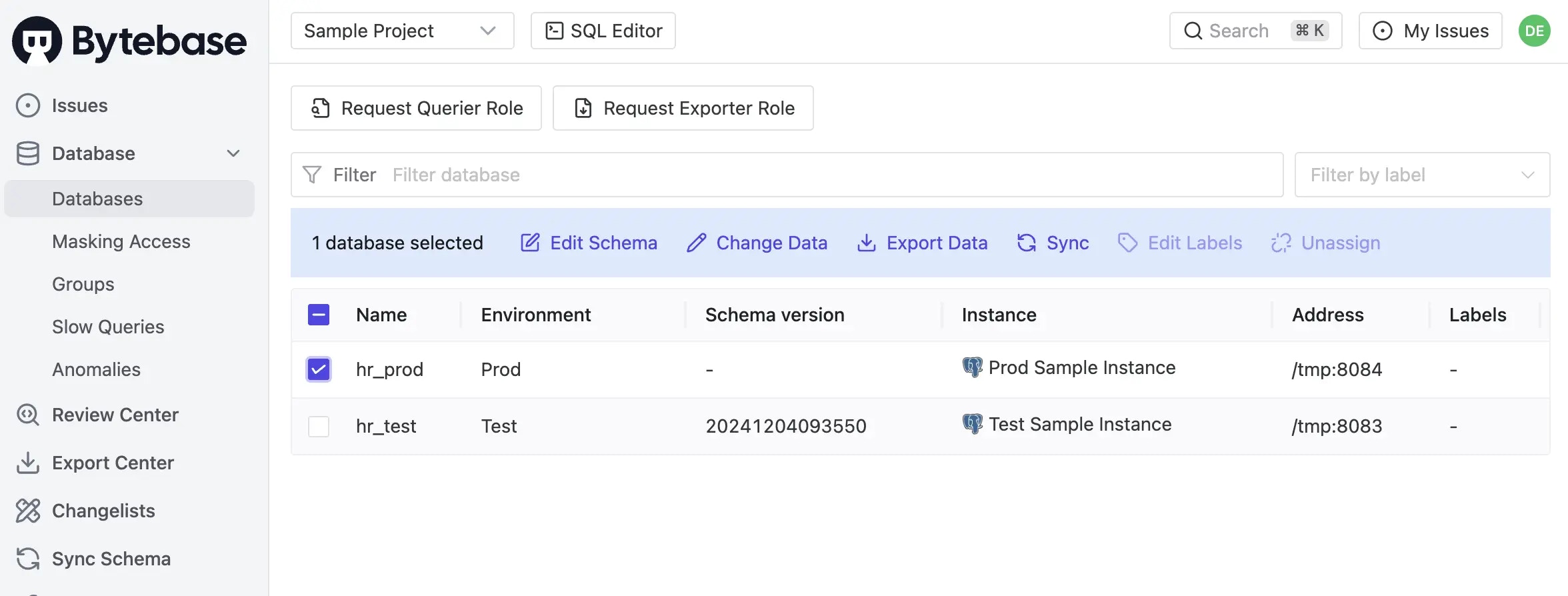

  3. Click Database > databases, select the hr_prod database, and click Request Querier role. bb-db-request

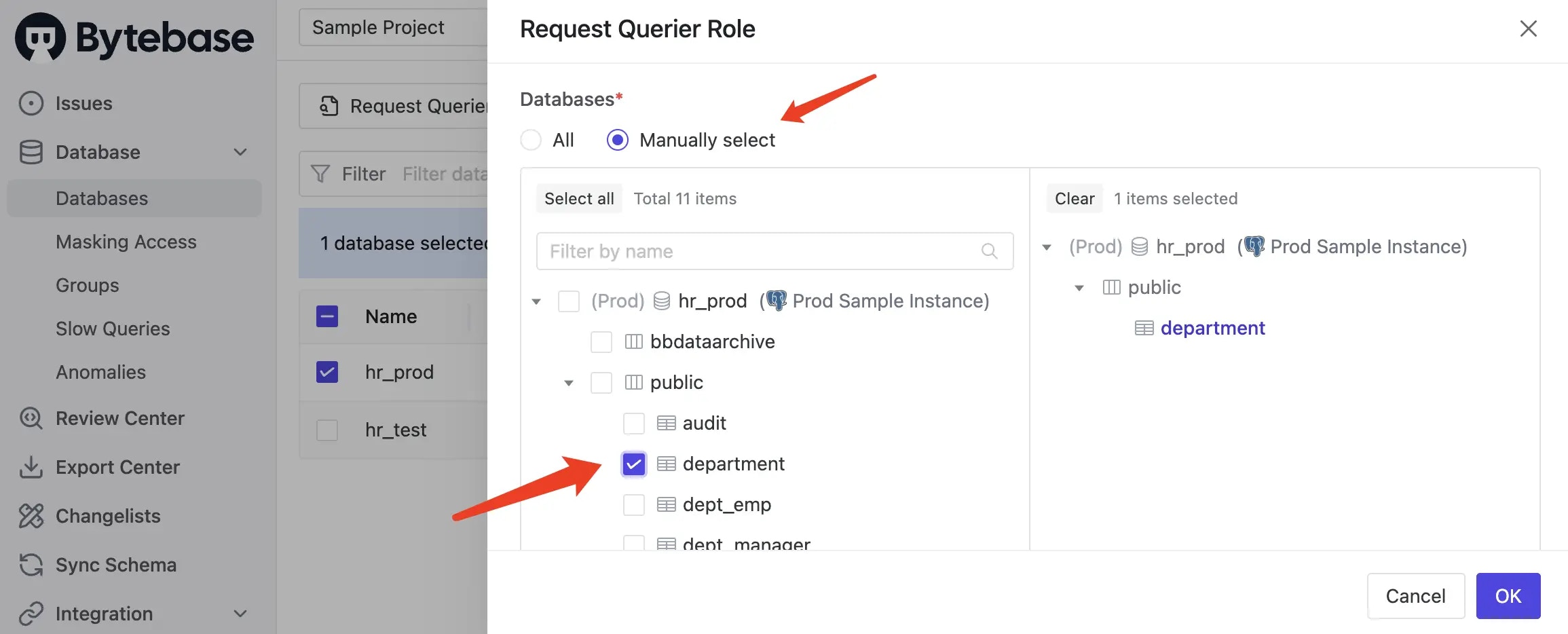

  4. Choose the database or table you want to access, and click OK. bb-request-select

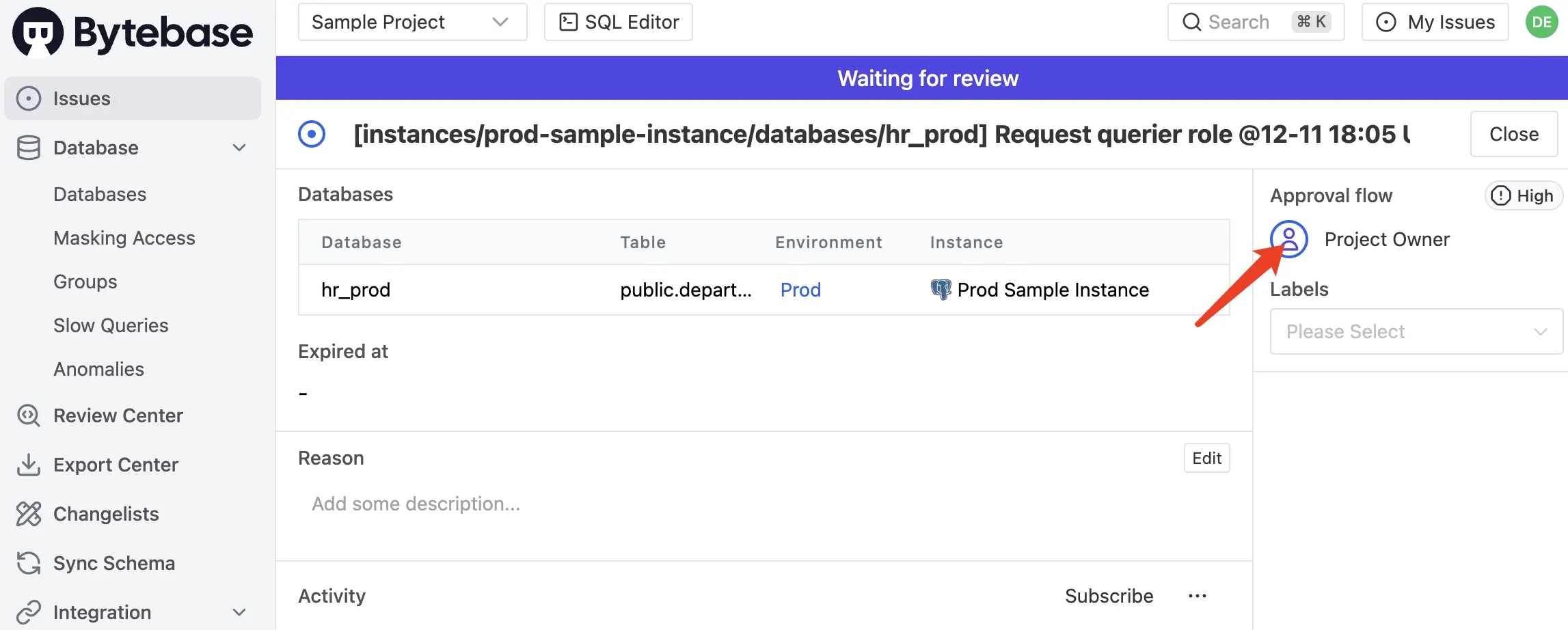

  5. A request issue is created, the configured custom approval flow will be matched. bb-issue-waiting

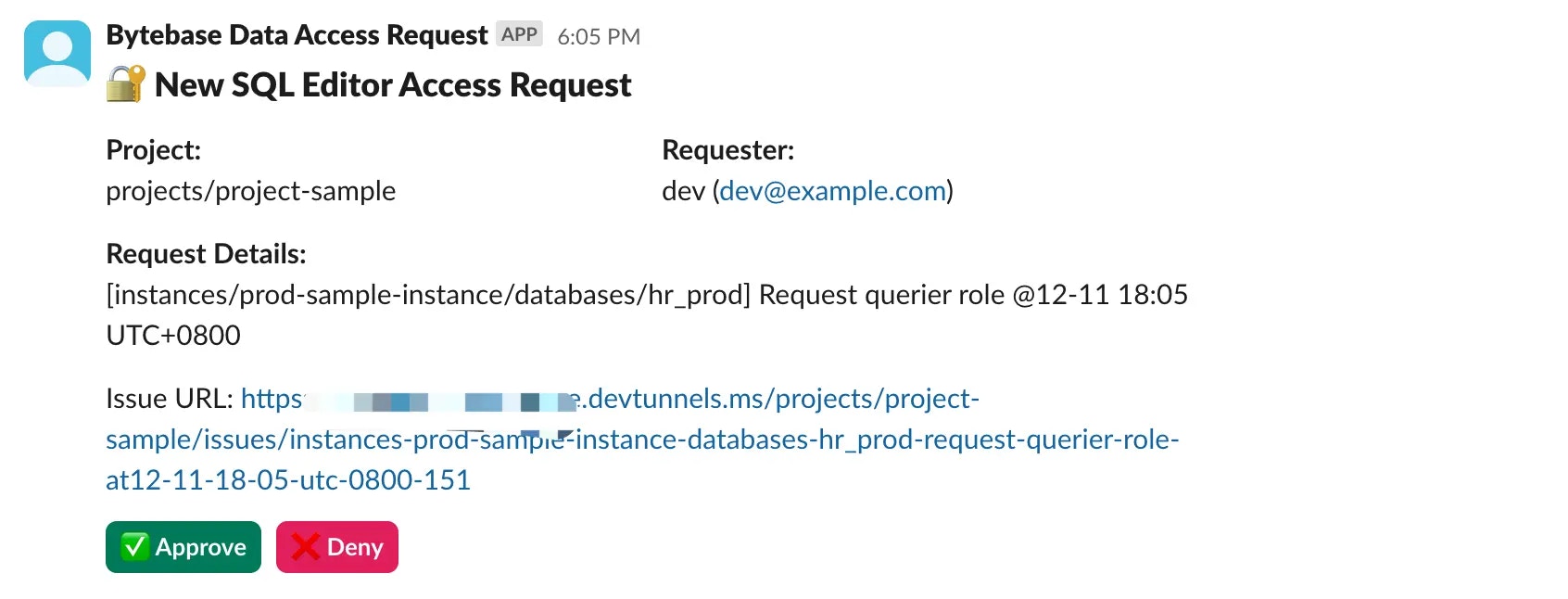

  6. Go to Slack, the bot already sent a message to the channel, which is triggered by the webhook. slack-to-approve

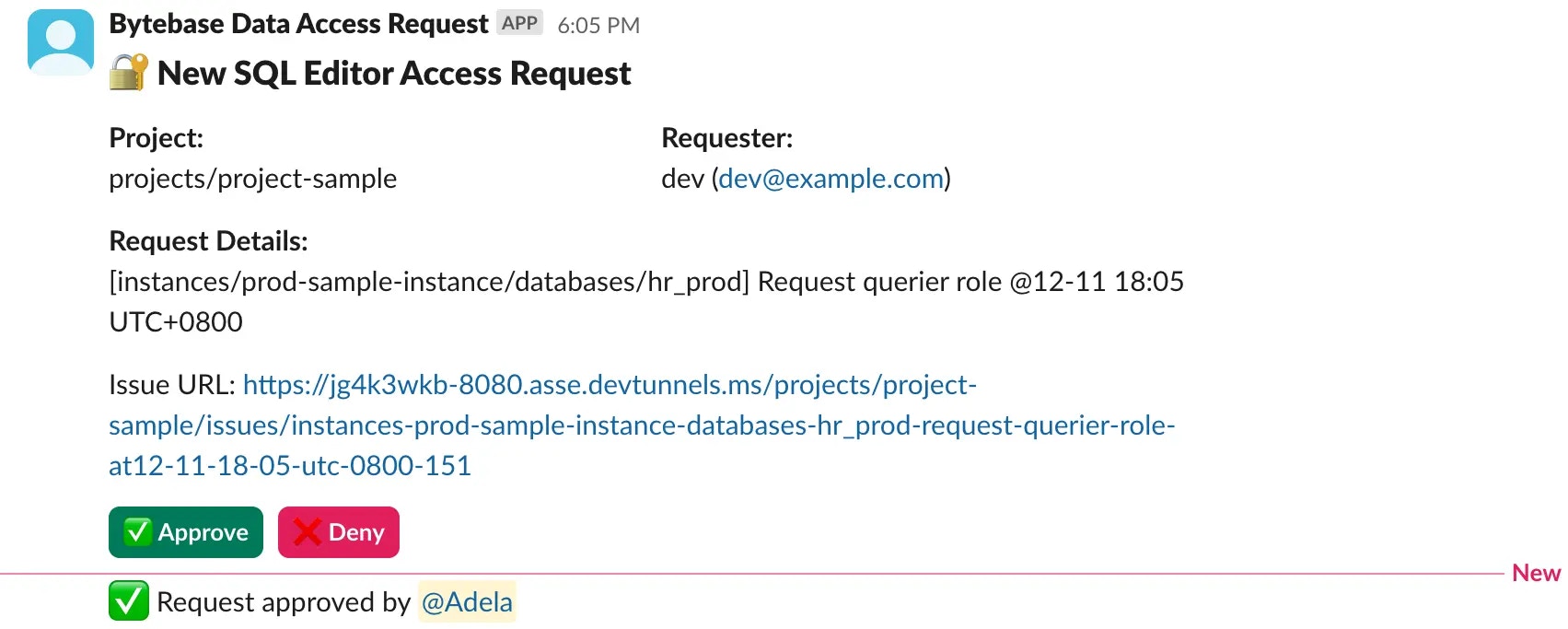

  7. Click Approve and the Slack Bot will trigger the interact API, which calls Bytebase API to approve the issue. slack-request-approved

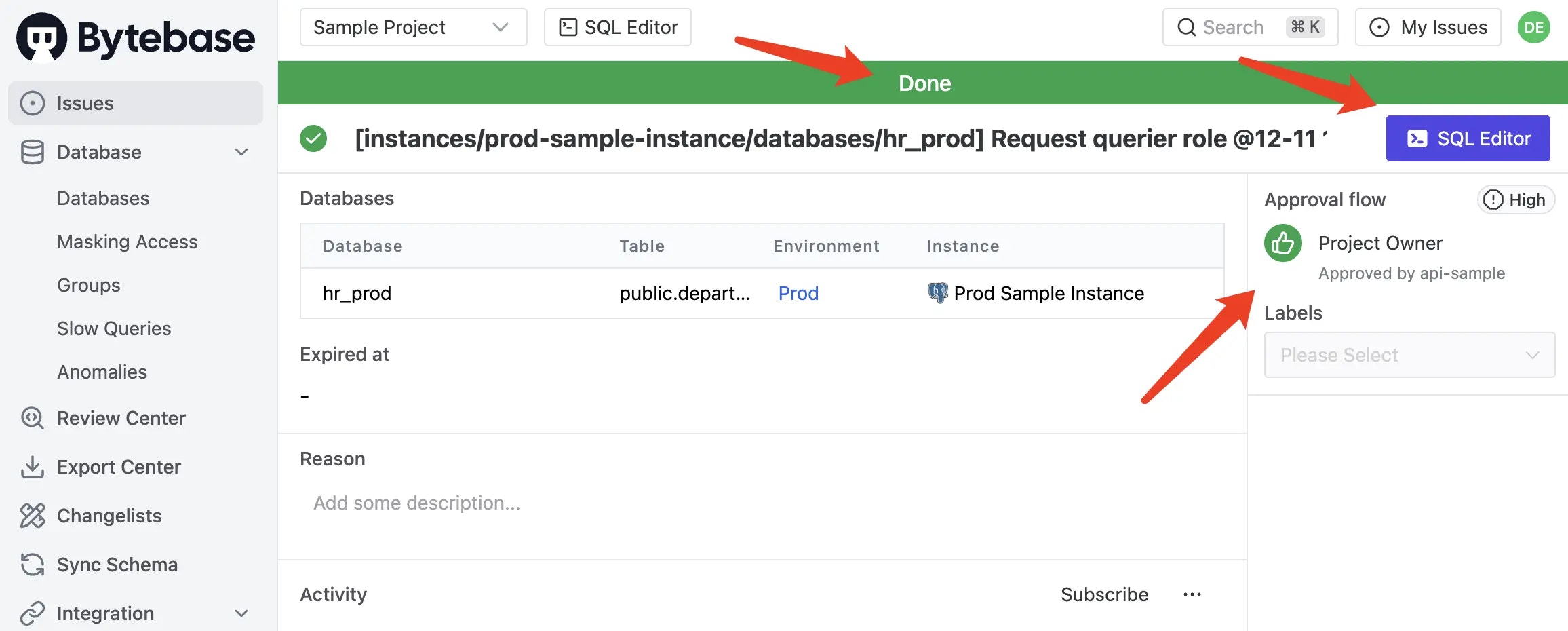

  8. Go back to Bytebase, the issue is approved. The developer can access the database now. bb-issue-approved

​
Code structure

If digging into the code is your interest, here is a brief explanation of the code structure:
  • src/app/api/bytebase/webhook/route.ts: handle the webhook from Bytebase.
  • src/app/api/slack/interact/route.ts: handle the interaction (Approve or Deny) from Slack to Bytebase.
  • src/lib/slack.ts: send the message to Slack via using the its web API.

​
Conclusion

Congratulations! You’ve successfully set up JIT database access via Slack with the help of Bytebase webhooks and APIs.
